Interest Check

https://geekhack.org/index.php?topic=114688.0

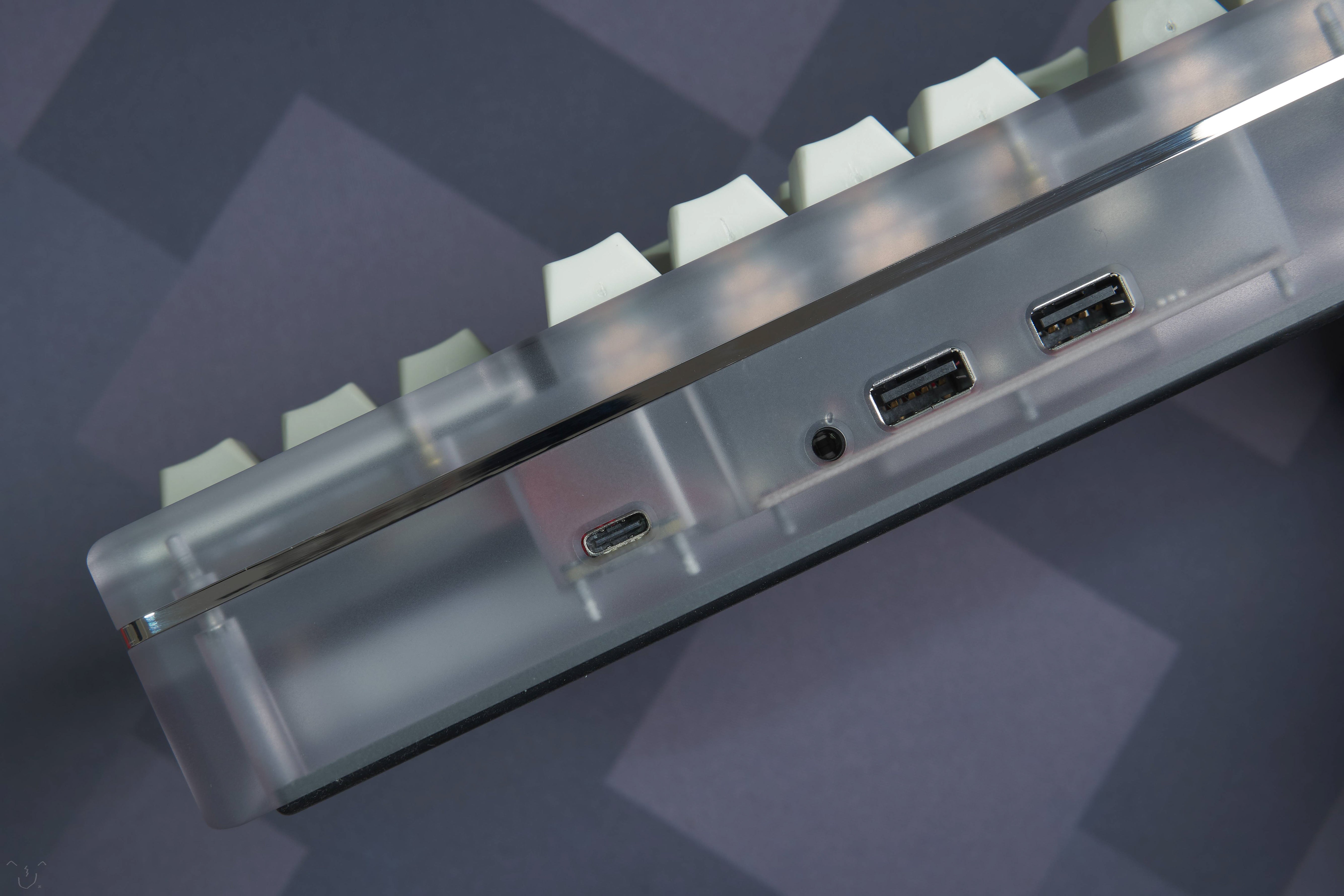

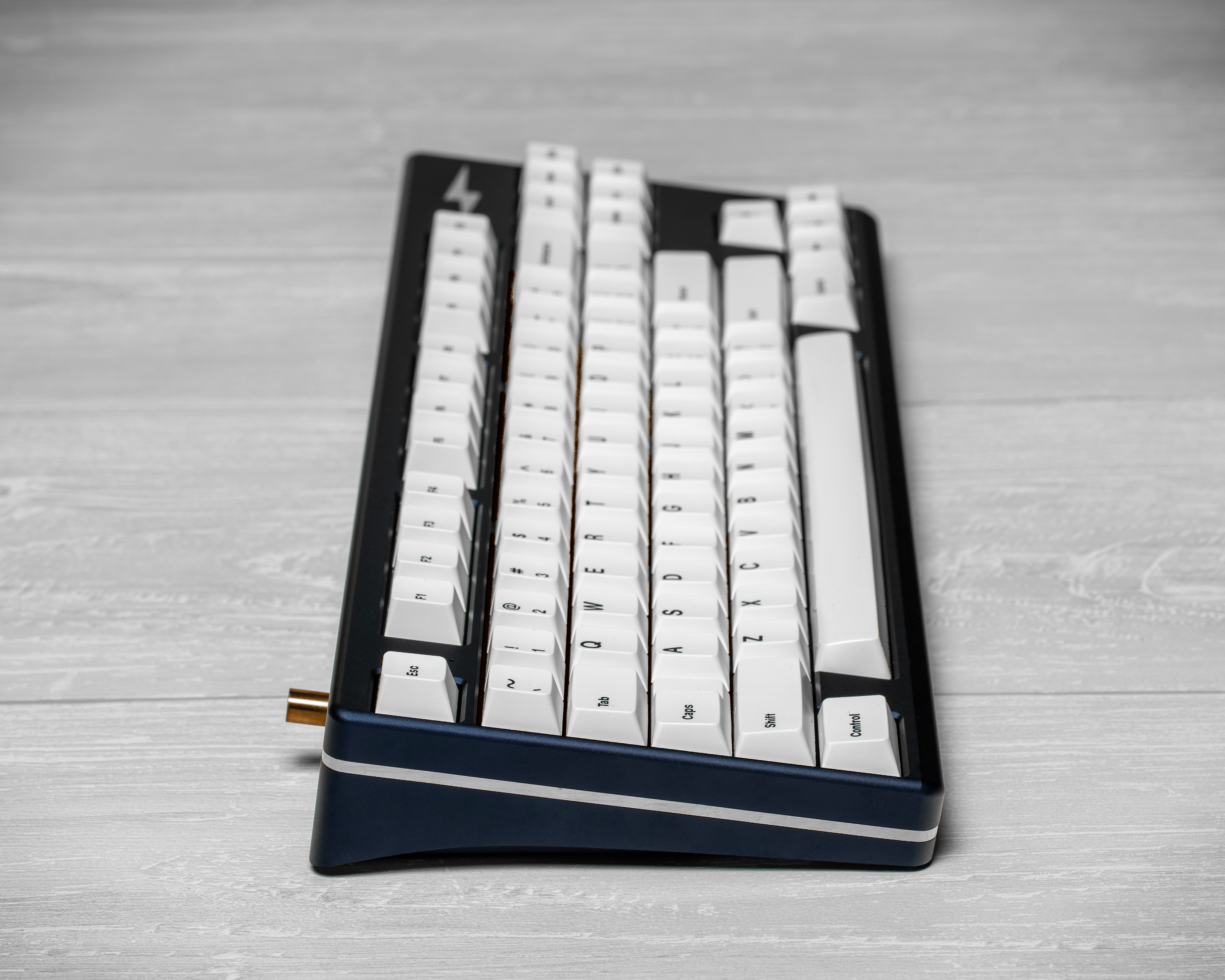

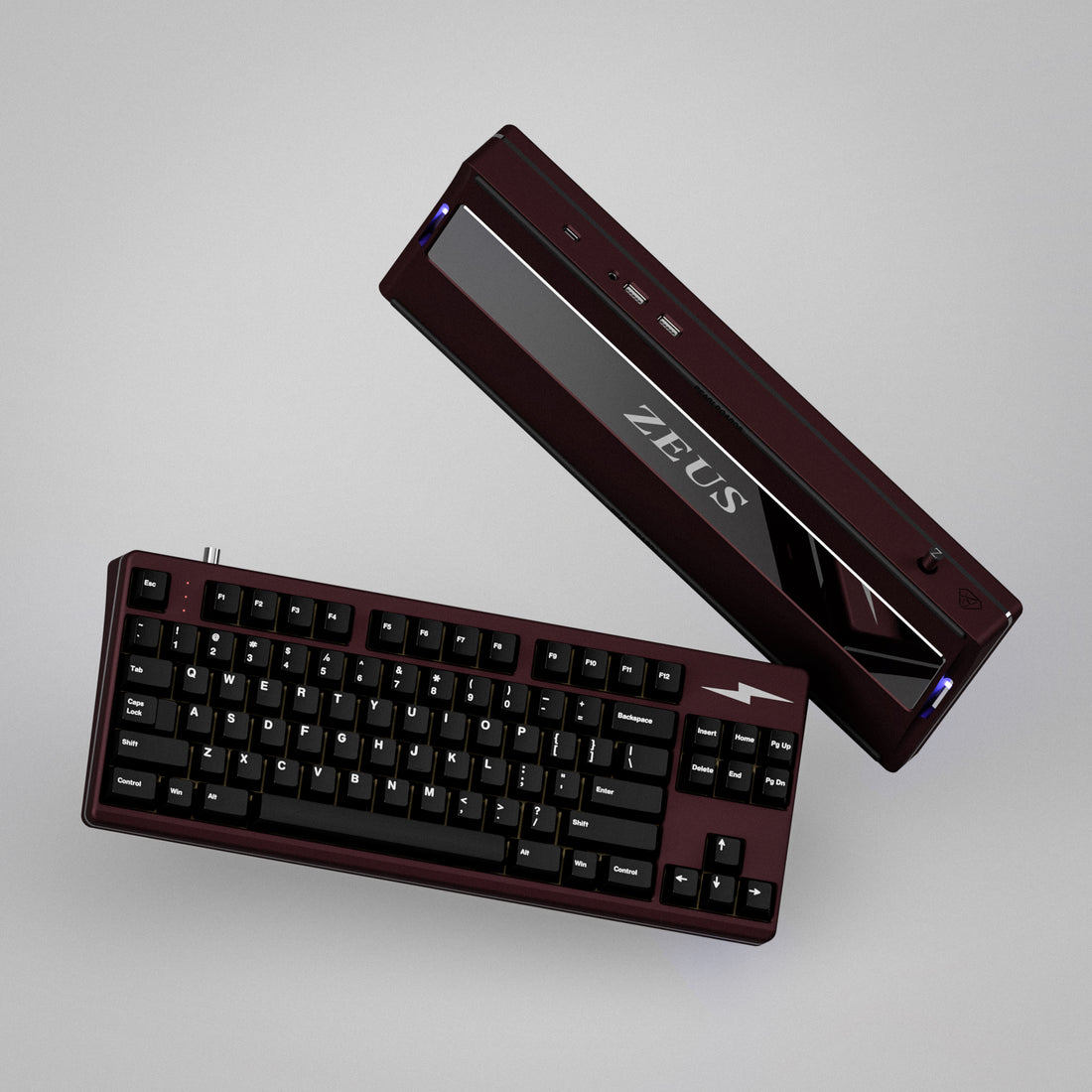

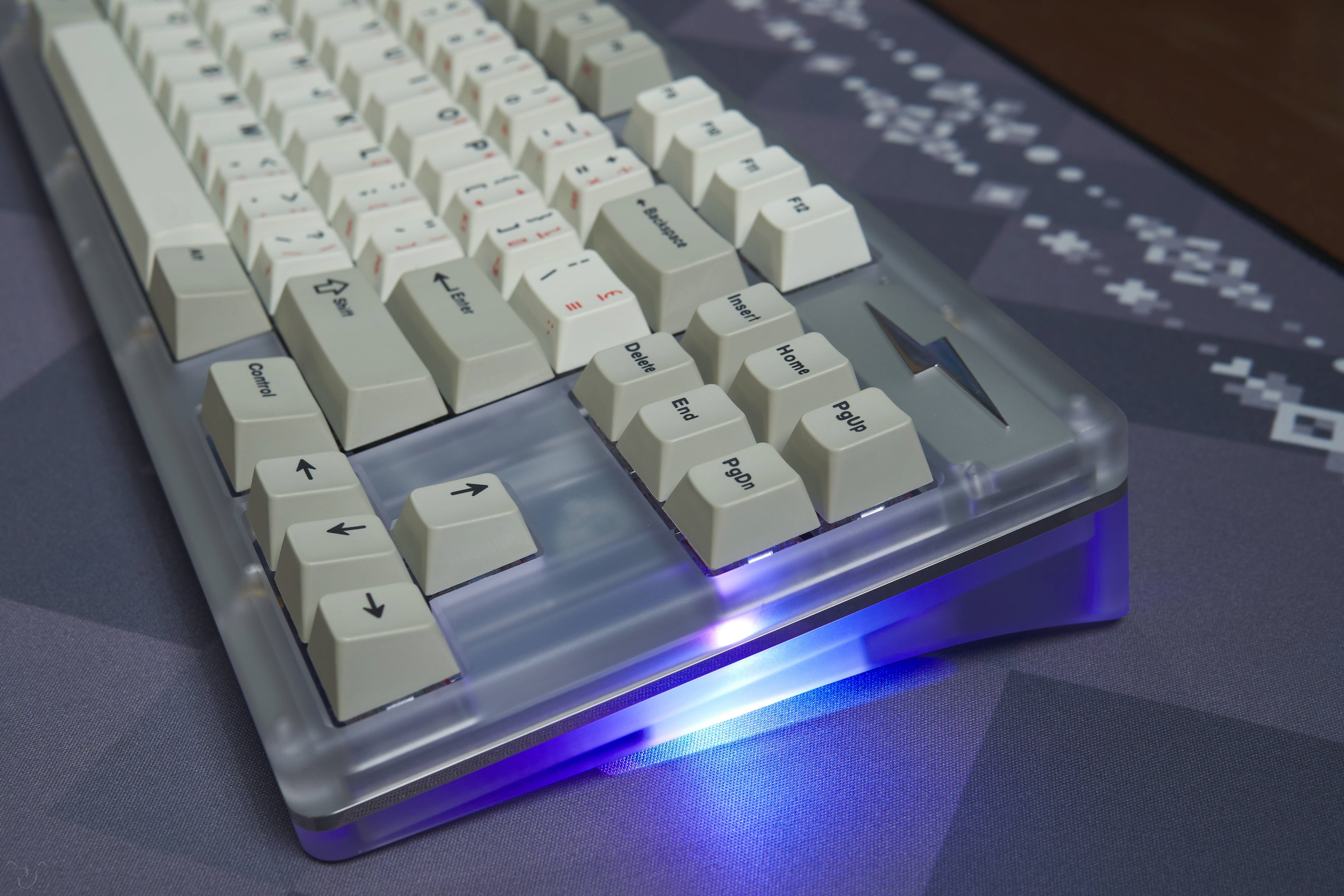

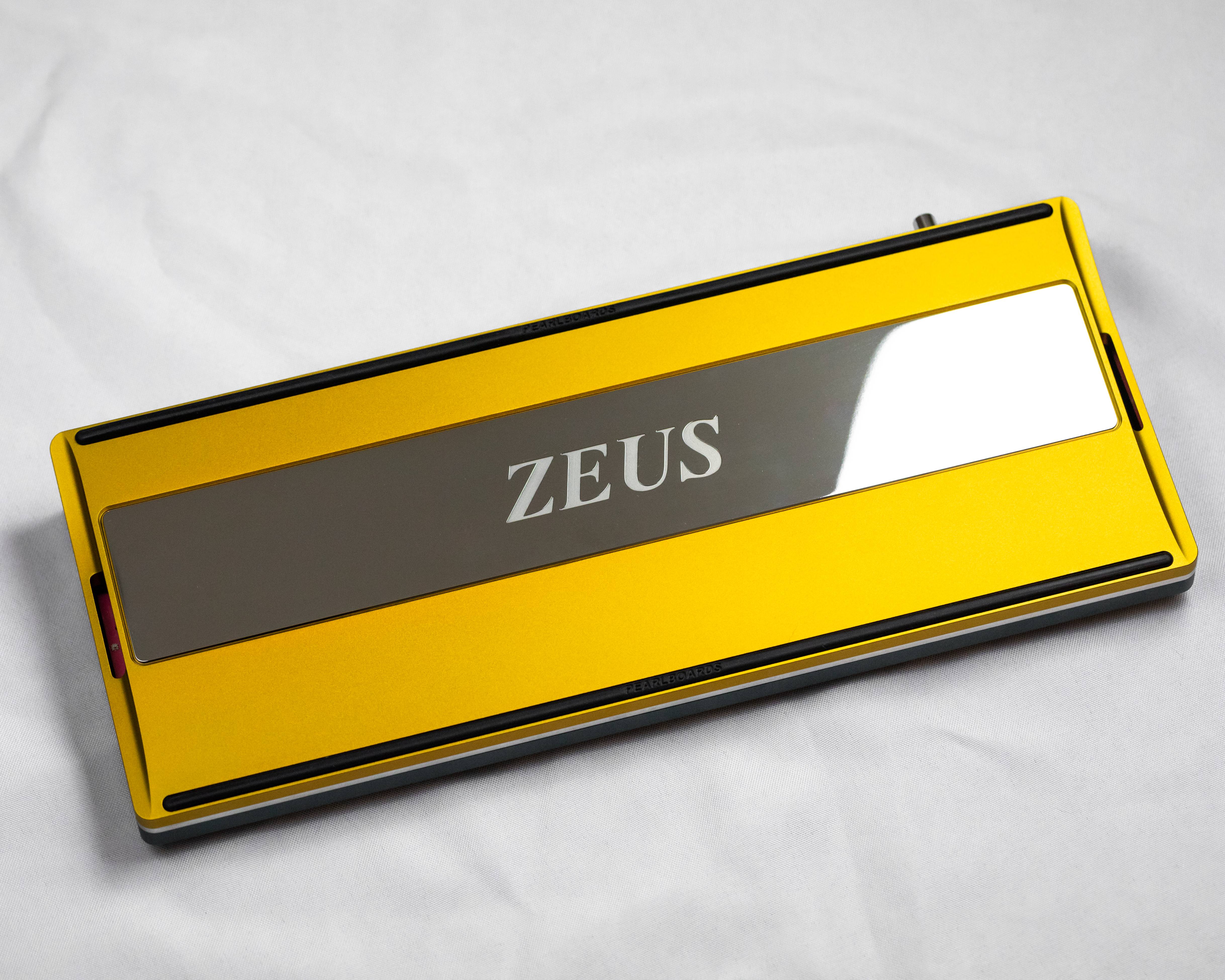

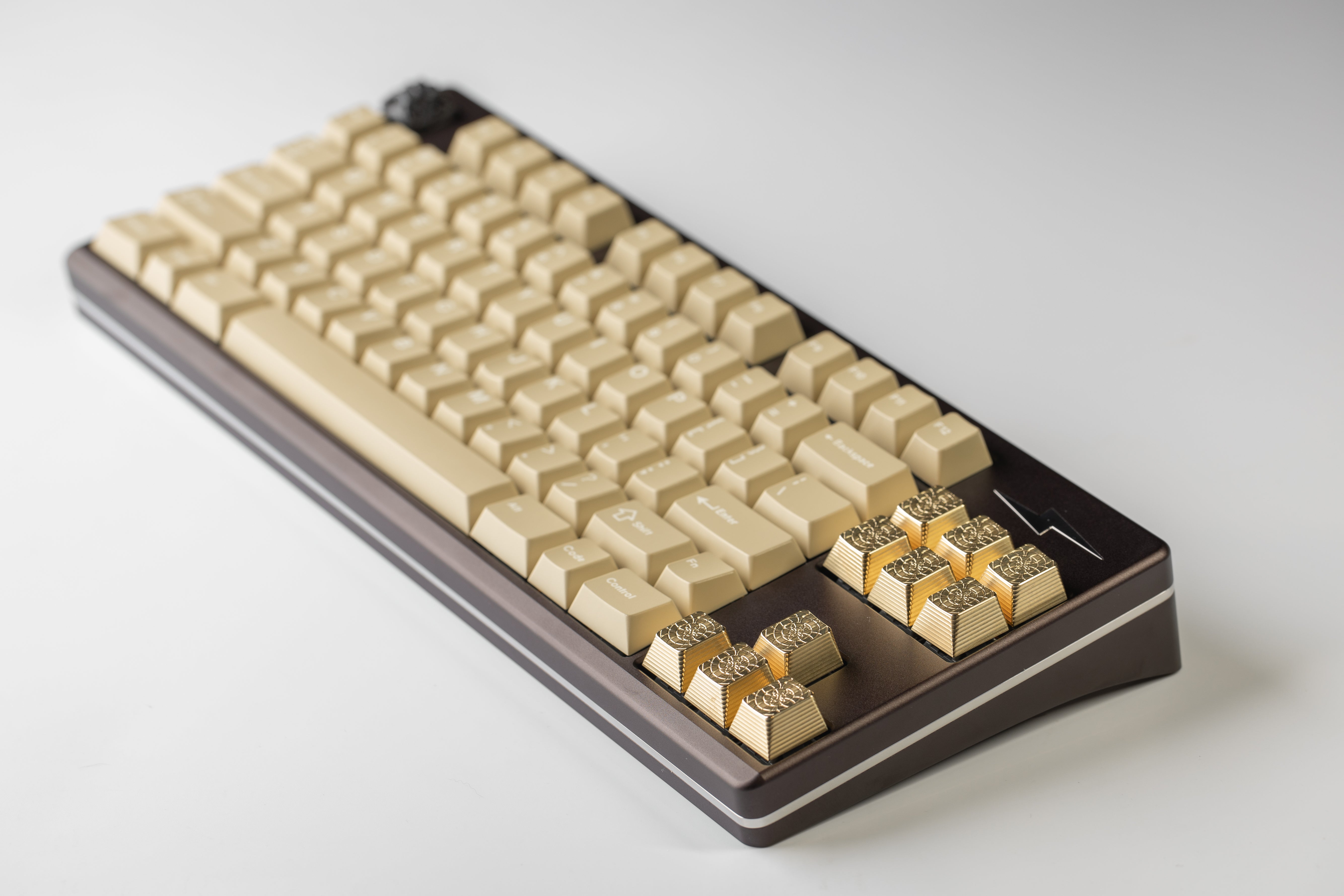

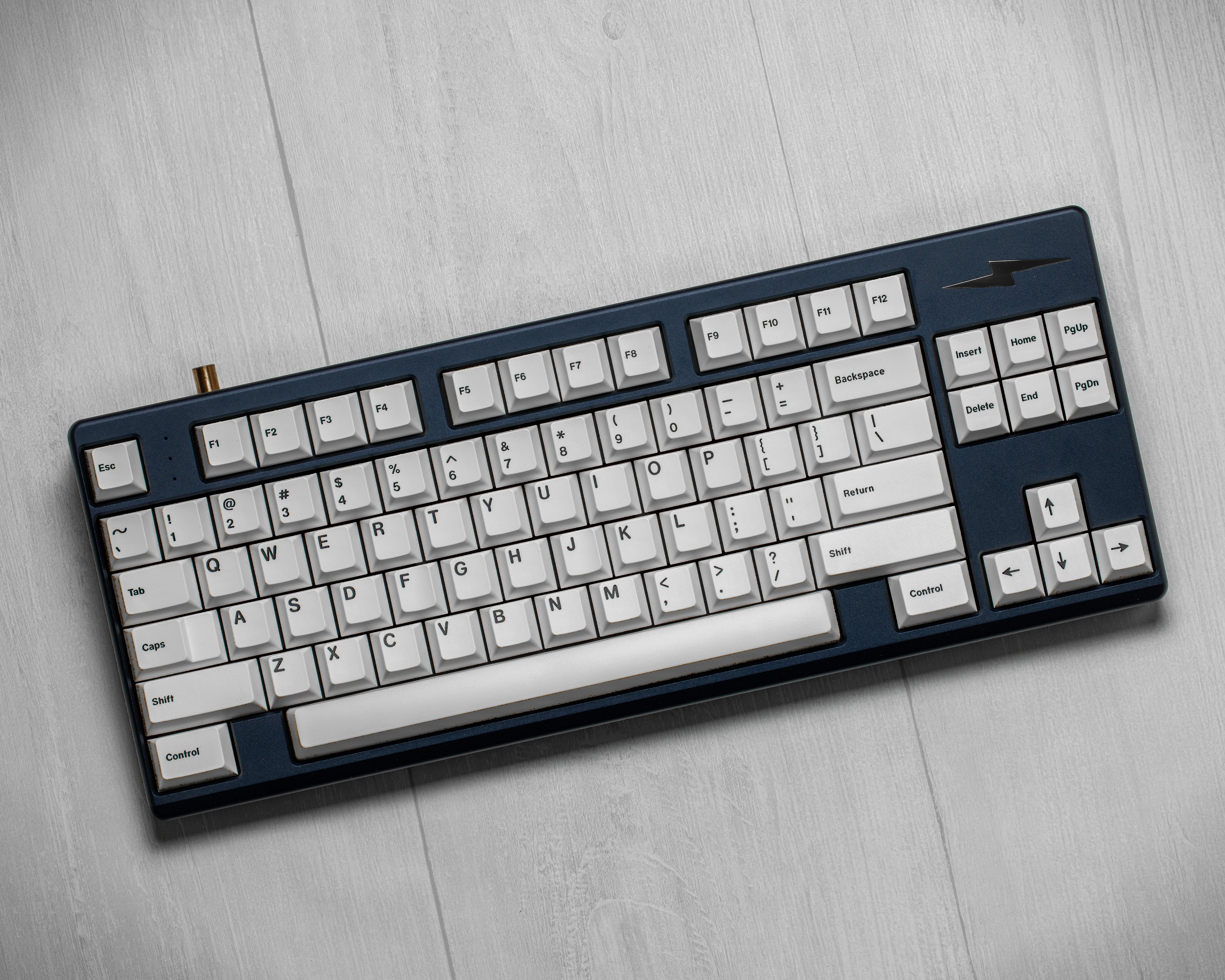

Zeus TKL is a 1%, premium wired/wireless, top-burger mounted keyboard which uses USB-C, has dedicated dual USB pass-throughs, a built in DAC with a 3.5mm headphone jack, a rear mounted rotary encoder, triple indicators and an internal audio speaker. It features exotic PVD coated metals or polycarbonate, a hefty weight, and a beautiful curved side profile. The sides feature hollow winglets to shine RGB down onto your desk, and the 8.3° typing angle gives you a perfect typing experience. As a final touch, each board will come with a large micro-fiber cleaning cloth and its own designer packaging.



Specifications:

  • Wired or Wireless PCBs
  • Dedicated Triple Locking Indicators
  • RGB Under-glow
  • Top-burger Mounted

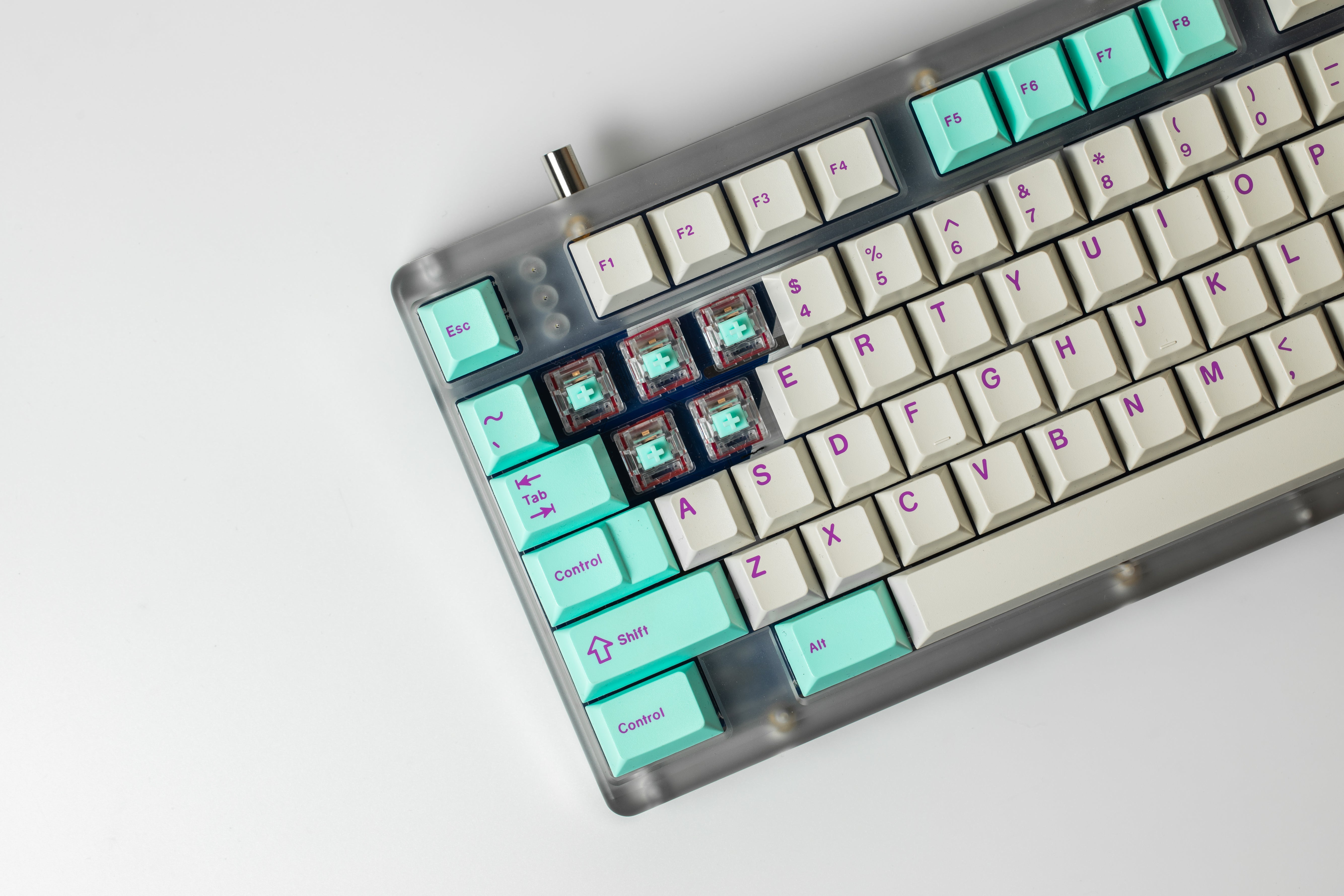

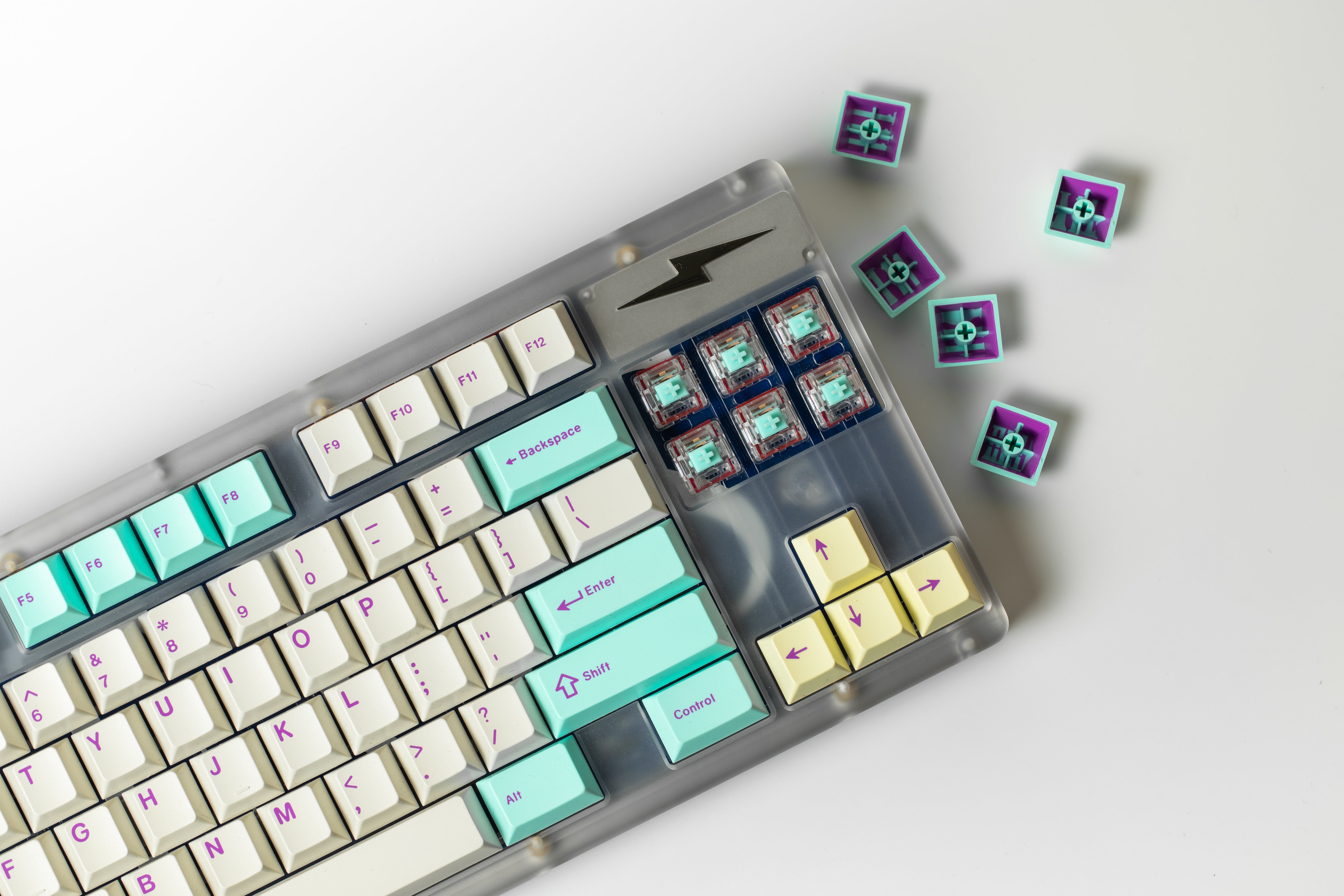

  • Hotswap or Solder PCB variants
  • ANSI and ISO Support
  • 10u Spacebar Support

Supported Layouts:

  • WK or WKL
  • Regular or Split Backspace
  • Regular or Stepped Caps Lock
  • ANSI or ISO Left Shift
  • ANSI or ISO Enter
  • Split Right Shift
  • 6.25u, 7u, 10u Spacebar

Contents:

  • 1 x Case Top

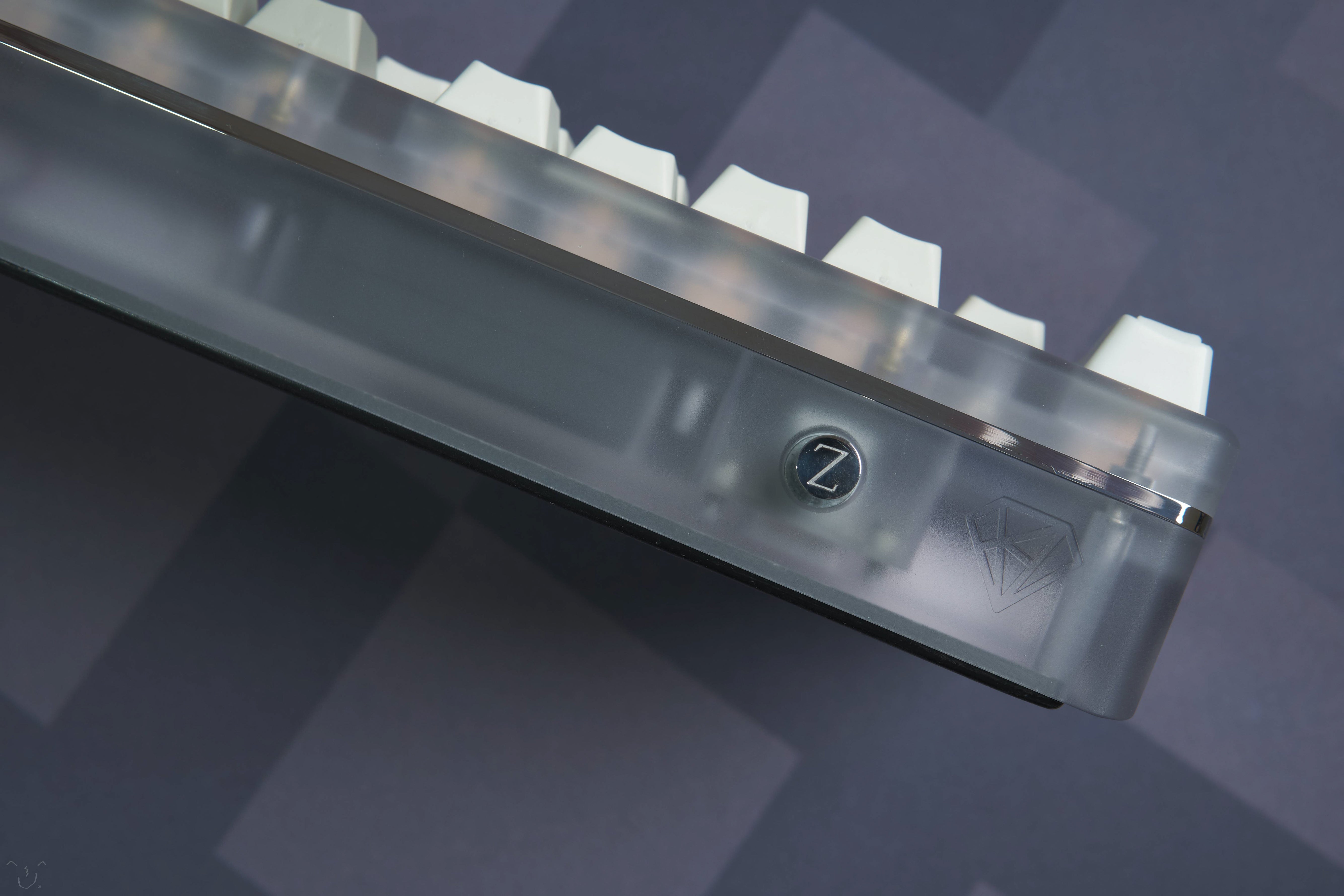

  • 1 x Blocker Badge
  • 1 x Plate
  • 1 x Mid-layer (SS or Brass)
  • 1 x Rotary Encoder with SS or Brass Knob
  • 1 x Case Bottom

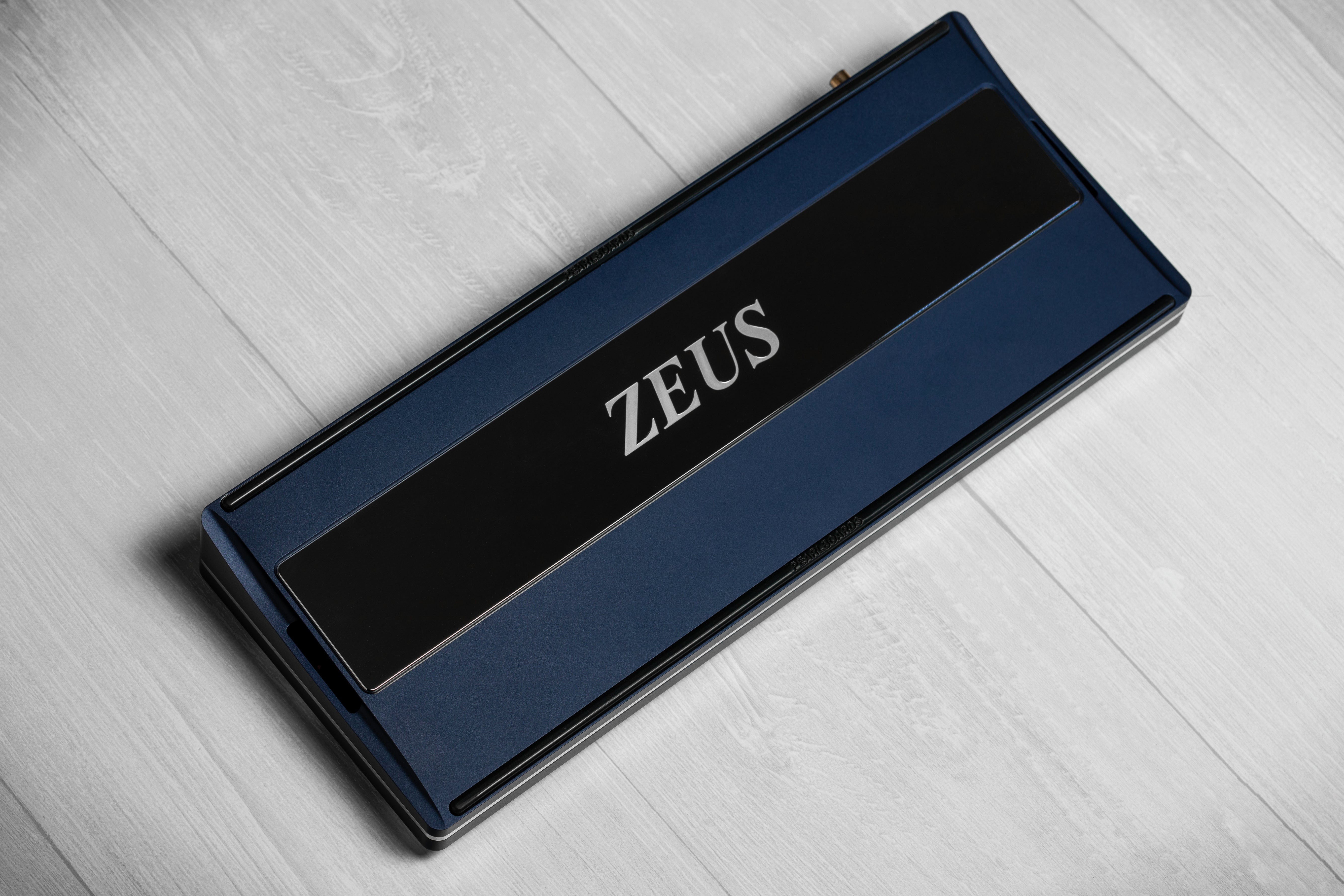

  • 1 x Weight (SS or Brass)
  • 1 x Dual USB Hub
  • 1 x USB-C Daughter-board
  • 1 x PCB (BT or QMK)
  • 3 x JST Cables
  • 1 x Internal Audio Speaker
  • 8 x M3 Plate Screws
  • 1 x PCB/Plate EVA Foam
  • 1 x Case EVA Foam
  • 2 x Gold M2 Badge Screws
  • 4 x Gold M3 Weight Screws
  • 3 x M2 USB Hub Screws
  • 4 x M2 USB-C Daughter-board Screws
  • 2 x Gold M3 Encoder Screws
  • 6 x Gold M3 Case Screws
  • 2 x 3M Silicone Case Feet

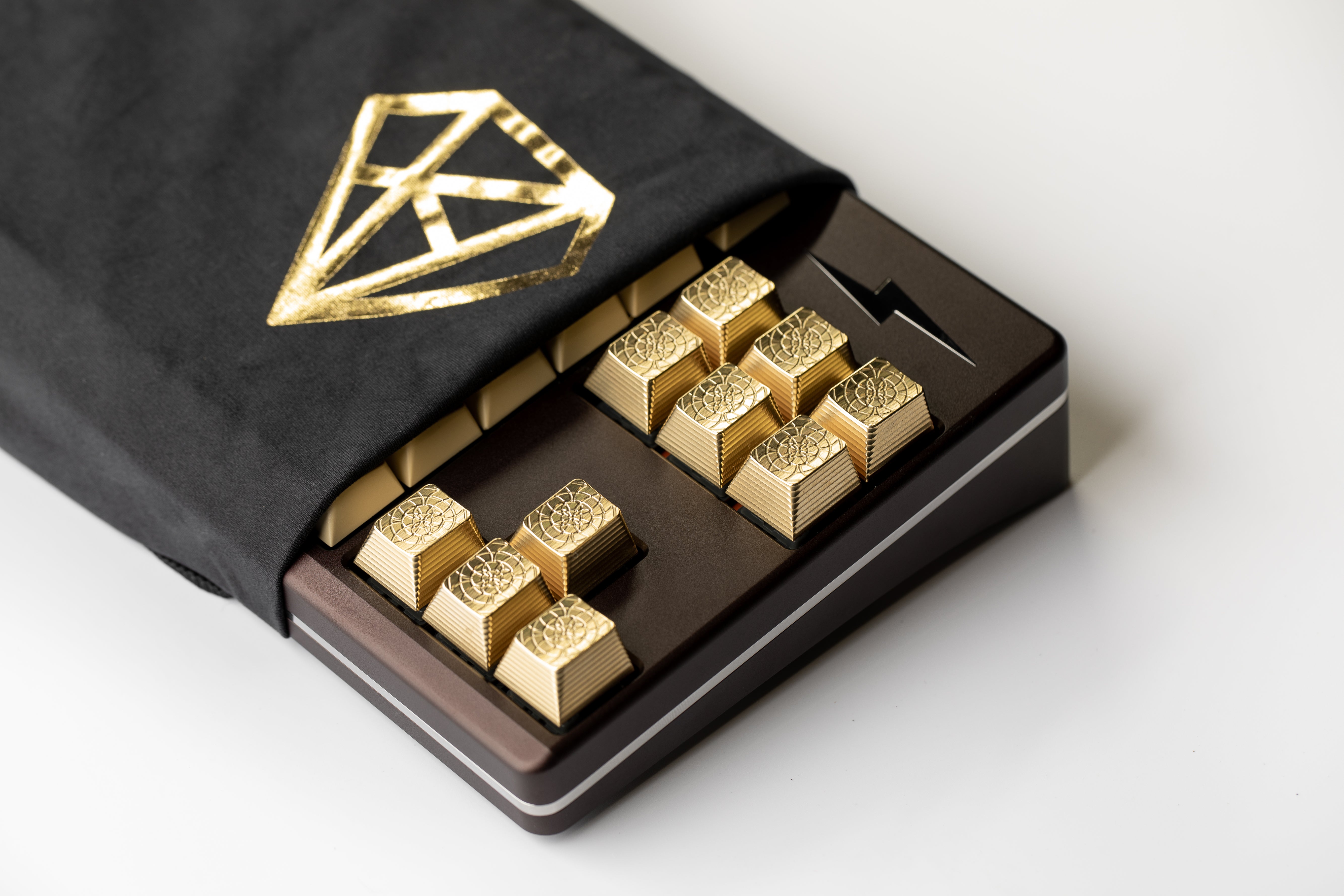

  • 1 x Large Micro-fiber Cloth

Preorder Information:

  • TBD
  • Shipping in 8-12 Months Est
  • Limited Units Available

Disclaimer:

  • Photo renders are for representative purposes only. Final production colors will differ.
  • Production parts will have tiny blemishes or flaws. Anything not considered A-Stock will be noted and customers in question will be notified about the issue.
  • Brass will not come PVD-Coated, only polished, and will be prone to tarnishing.
  • While the visible outside of the case will be visually free of any imperfections, It is expected that the interior of the case will not be prioritized and may have tooling marks, unpolished surfaces and faulty anodizing.
  • PCB components may arrive faulty from the factory and could need a re-solder/replacement to work.
  • Shipping may damage the product, at which point I will not be held liable.
  • Timelines are not accurate and are approximated based on quotes from manufacturers.
